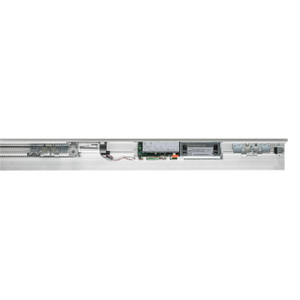

TSA 20 SLIDING DOOR OPENER
Utilising the same track and components of the System 20 automatic door operator, the TSA 20 telescopic door operator features and additional track and belt system to provide twice as many sliding door panels, for a wider clear entrance opening that standard sliding doors.
Just as inviting and reliable as the traditional sliding doors, but more impressive in construction and operation are our two or four leaf telescopic sliding doors. In comparison with the traditional sliding door, they take up about 30 % less space thanks to their narrower leaves, and can cover especially large opening widths of up to 4 000 mm. The maximum door weights range from 2 x 130 kg for single, and 4 x 90 kg for telescopic sliding doors on both sides.
The system 20 is the first automatic door system featuring interactive communication, simplified commissioning, intuitive control and greatly enhanced operational safety and reliability. The system 20 supplies the basis of our automatic door drives. It enables us to provide a wide range of models for the market, all of which are based on this system and use the same components, modified to suit the needs of the individual customer. The result is quicker assembly, high reliability and with lower service and maintenance costs.
Mechanics
-
The absence of noise is the most striking feature of our automatic doors and is achieved with a combination of
-
acoustically decoupled, hardened running tracks (replaceable)
-
running carriage with hardened nylon wheels with sealed bearings and compensation for structural tolerance and adjustable attachment to door leaves
-
motor and guide pulleys with sealed bearings
-
low momentum toothed belt drive for minimum wear and low acoustic impact
Electronics
-
interactive communication between components to monitor and enhance performance, safety and security
-
malfunction potential is greatly reduced by the drive monitoring ability
-
self learning processor with active automatic adjustment for optimum operation is the heart of the drive system which provides ongoing quality performance
-
BDE-M keyed 4 position mode switch with “reset” is supplied as standard
Key Features
-
standard 160 mm and low profile 110 mm drive units
-
high capacity with efficient and low noise operation
-
failsafe electric motor brake locking with battery backup
-
self monitoring system with diagnostics
-
low noise, long life, replaceable track system
-
height adjustable trolleys with anti-rise and long wear wheels
-
matching profiles for standard and telescopic units
Design
Carefully designed housing and covers in quality Aluminium provide the aesthetically pleasing appearance of our systems which provide both standard and low profile options with the same 100 % duty rated performance. The elegant design lines allow our door systems to be integrated harmoniously into a building, or become a style feature.
Technical Drawing - 110mm cover profile framed glass
Technical Drawing - 110mm cover profile frameless glass
